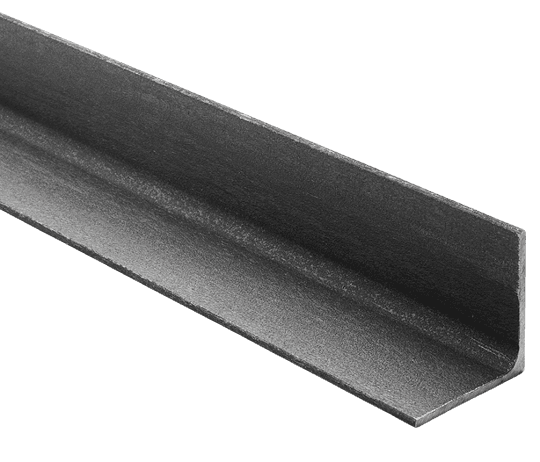

Equal Angle

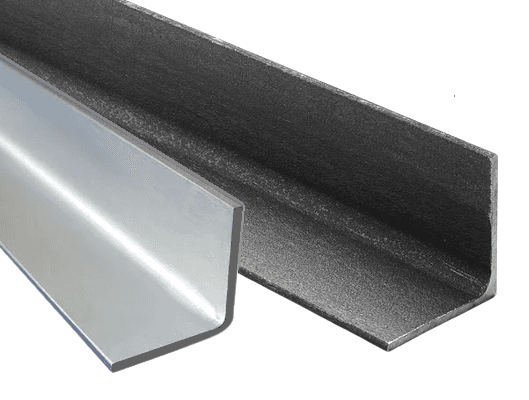

Equal Angle Detail
Equal Angle Application
Equal Angle Stack
Equal Angle Cross Section

Equal Angles

18 Reviews|In Stock

Standard: AS/NZS 3679.1

Grade: 300Plus

Equal Angles are L-shaped structural steel sections with two equal-length perpendicular legs, designed for versatile structural applications. These profiles provide excellent strength characteristics for bracing, framing, and support applications where uniform load distribution is required across both legs. Manufactured to AS/NZS 3679.1 standards using 300Plus grade steel.

Select Size

Selected Product Details:

  • Designation:200 x 200 x 20
  • Weight:60.1 kg/m
  • Leg Size:200 x 200 mm
  • Thickness:20.0 mm
  • Surface Area:0.788 m²/m
  • Length:9m
Quantity

Equal Angles, also known as L-sections or angle iron, are structural steel sections featuring two perpendicular flanges of equal length forming an L-shaped cross-section. These versatile profiles are fundamental components in structural engineering, providing excellent strength characteristics for a wide range of building and construction applications.

Our Equal Angles are manufactured to AS/NZS 3679.1 standards using high-quality 300Plus grade steel. The L-shaped profile offers excellent strength-to-weight ratios and provides exceptional versatility for bracing, framing, and structural support applications where uniform load distribution across both legs is required.

Key Features:

  • Manufactured to AS/NZS 3679.1 standards for structural steel
  • 300Plus grade steel ensuring superior strength and durability
  • L-shaped cross-section with equal leg lengths for balanced load distribution
  • Excellent strength-to-weight ratio for efficient structural design
  • Range of sizes from 125mm to 200mm with various thicknesses
  • Versatile orientation options for different structural requirements
  • Ideal for bracing, framing, and general structural applications
  • Standard and custom lengths available to suit project requirements
  • Precision manufactured for consistent dimensional accuracy
