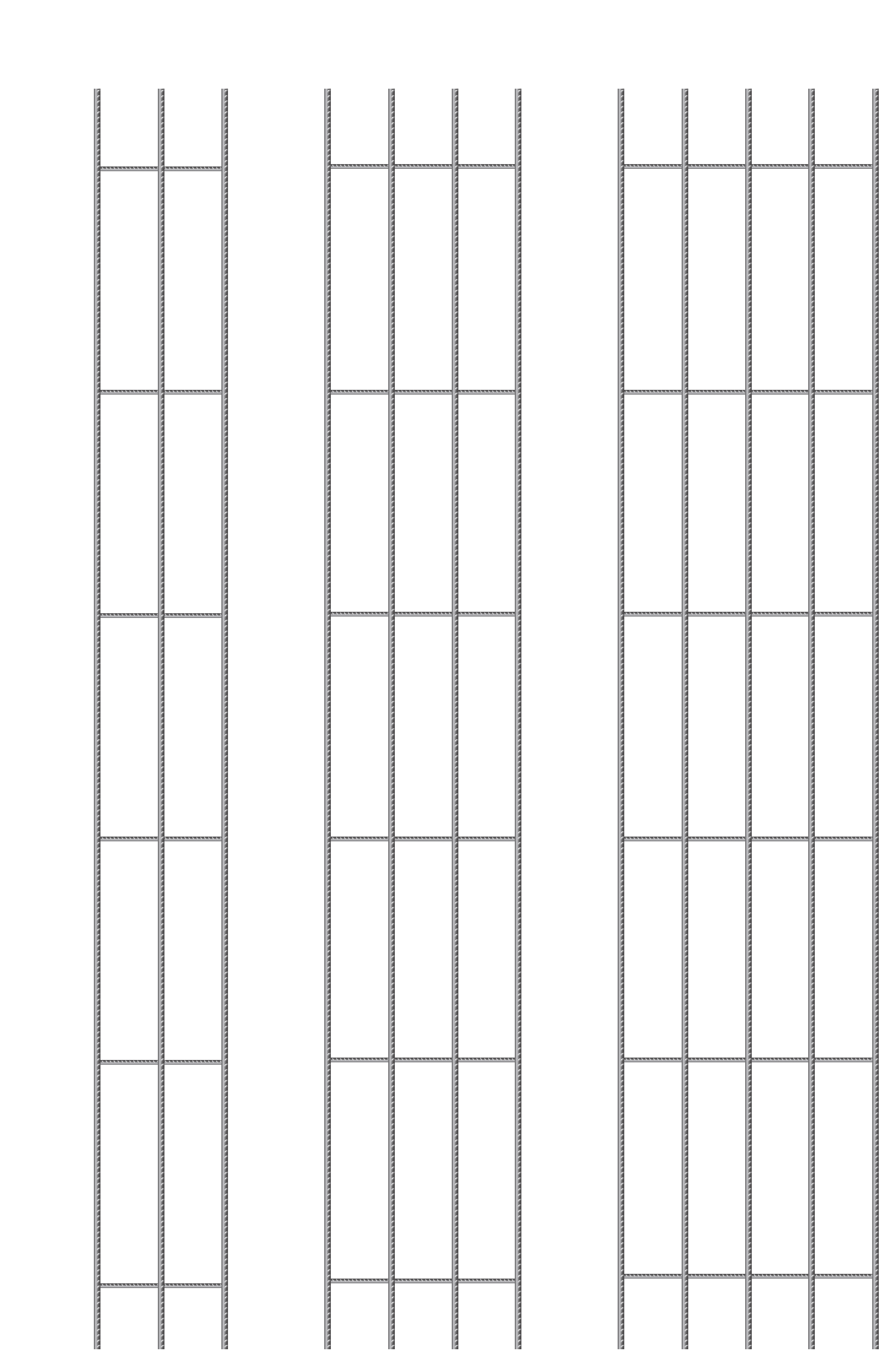

Trench Mesh

ACRS certified reinforcing trench mesh is made from N grade deformed reinforcing wire to strengthen concrete footings and beams. Our Australian certified prefabricated trench mesh is available in a variety of gauge diameters and widths — most commonly in 6-metre lengths in 3-bar and 4-bar configurations for strip footings and beams. Using ACRS accredited ribbed wires helps maximise concrete strength, minimise cracking and ensures your job conforms to Australian building standards.

Trench Mesh Suppliers with Competitive Prices

Buying trench mesh from retail stores can be high-priced, especially in larger quantities. We provide cost-effective pricing to the civil, commercial, residential and DIY industries. Select from the sizes below or we can cut-to-size to suit your specifications.

Here to Help with 4-Bar and 3-Bar Trench Mesh

Need support? Call +61 449 525 928. We’ll help you determine exactly what you need and keep your reinforcing on schedule.

Quote Assistant

Trench Mesh

No mesh selected

Show available sizes

Code	Unit	Size (H × W)	Longitudinal	Cross	Mass	Note
L8TM3*	Sheet	6000×200	Ø8.29 @ 100	Ø4 @ 300	7.05kg
L8TM4*	Sheet	6000×300	Ø8.29 @ 100	Ø4 @ 300	9.49kg
L8TM5*	Sheet	6000×400	Ø8.29 @ 100	Ø4 @ 300	11.94kg
L8TM6*	Sheet	6000×500	Ø8.29 @ 100	Ø4 @ 300	14.39kg
L8TM25	Sheet	6000×2400	Ø8.29 @ 100	Ø4 @ 300	60.79kg
L11TM3*	Sheet	6000×200	Ø11.2 @ 100	Ø5 @ 300	13.36kg
L11TM4*	Sheet	6000×300	Ø11.2 @ 100	Ø5 @ 300	17.89kg
L11TM5*	Sheet	6000×400	Ø11.2 @ 100	Ø5 @ 300	22.44kg
L11TM6*	Sheet	6000×500	Ø11.2 @ 100	Ø5 @ 300	26.99kg
L11TM25	Sheet	6000×2400	Ø11.2 @ 100	Ø5 @ 300	113.24kg
L12TM3*	Sheet	6000×200	Ø12.5 @ 100	Ø8 @ 300	16.36kg
L12TM4*	Sheet	6000×300	Ø12.5 @ 100	Ø8 @ 300	21.9kg
L12TM5*	Sheet	6000×400	Ø12.5 @ 100	Ø8 @ 300	27.45kg	Excluding WA
L12TM6*	Sheet	6000×500	Ø12.5 @ 100	Ø8 @ 300	33kg

Loaded sizes for Trench Mesh

Code	Unit	Size (H × W)	Longitudinal	Cross	Mass	Note
L8TM3*	Sheet	6000×200	Ø8.29 @ 100	Ø4 @ 300	7.05kg
L8TM4*	Sheet	6000×300	Ø8.29 @ 100	Ø4 @ 300	9.49kg
L8TM5*	Sheet	6000×400	Ø8.29 @ 100	Ø4 @ 300	11.94kg
L8TM6*	Sheet	6000×500	Ø8.29 @ 100	Ø4 @ 300	14.39kg
L8TM25	Sheet	6000×2400	Ø8.29 @ 100	Ø4 @ 300	60.79kg
L11TM3*	Sheet	6000×200	Ø11.2 @ 100	Ø5 @ 300	13.36kg
L11TM4*	Sheet	6000×300	Ø11.2 @ 100	Ø5 @ 300	17.89kg
L11TM5*	Sheet	6000×400	Ø11.2 @ 100	Ø5 @ 300	22.44kg
L11TM6*	Sheet	6000×500	Ø11.2 @ 100	Ø5 @ 300	26.99kg
L11TM25	Sheet	6000×2400	Ø11.2 @ 100	Ø5 @ 300	113.24kg
L12TM3*	Sheet	6000×200	Ø12.5 @ 100	Ø8 @ 300	16.36kg
L12TM4*	Sheet	6000×300	Ø12.5 @ 100	Ø8 @ 300	21.9kg
L12TM5*	Sheet	6000×400	Ø12.5 @ 100	Ø8 @ 300	27.45kg	Excluding WA
L12TM6*	Sheet	6000×500	Ø12.5 @ 100	Ø8 @ 300	33kg

Hi! I’m your quoting assistant for Trench Mesh. Tell me mesh code (e.g., L8TM4*), quantity (sheets or packs), delivery suburb/postcode and timing. I’ll prepare the quote.

Tip: scroll horizontally on mobile. Tap a row to select and open the assistant.

Product Code	Unit	Height	Length	Longitudinal Wires	Spacing	Cross Wires	Spacing	Mass	Note
L8TM3*	Sheet	6000	200	Ø8.29	100	Ø4	300	7.05kg
L8TM4*	Sheet	6000	300	Ø8.29	100	Ø4	300	9.49kg
L8TM5*	Sheet	6000	400	Ø8.29	100	Ø4	300	11.94kg
L8TM6*	Sheet	6000	500	Ø8.29	100	Ø4	300	14.39kg
L8TM25	Sheet	6000	2400	Ø8.29	100	Ø4	300	60.79kg
L11TM3*	Sheet	6000	200	Ø11.2	100	Ø5	300	13.36kg
L11TM4*	Sheet	6000	300	Ø11.2	100	Ø5	300	17.89kg
L11TM5*	Sheet	6000	400	Ø11.2	100	Ø5	300	22.44kg
L11TM6*	Sheet	6000	500	Ø11.2	100	Ø5	300	26.99kg
L11TM25	Sheet	6000	2400	Ø11.2	100	Ø5	300	113.24kg
L12TM3*	Sheet	6000	200	Ø12.5	100	Ø8	300	16.36kg
L12TM4*	Sheet	6000	300	Ø12.5	100	Ø8	300	21.9kg
L12TM5*	Sheet	6000	400	Ø12.5	100	Ø8	300	27.45kg	Excluding WA
L12TM6*	Sheet	6000	500	Ø12.5	100	Ø8	300	33kg

Trench mesh is generally quoted per sheet or pack. Pricing varies by mesh code, quantity and delivery location.

For current rates, request a quote or call us on +61 449 525 928.
