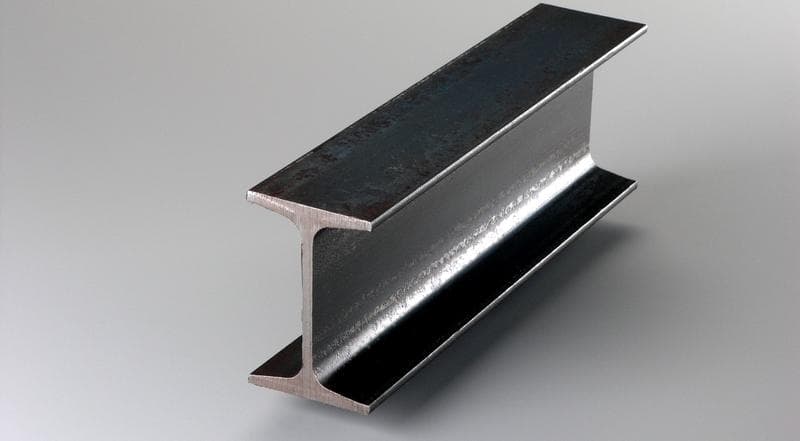

Universal Beam (UB)
Standard: AS/NZS 3679.1
Grade: 300Plus
Universal Beams (UB) are structural steel sections with an I-shaped cross-section. They provide excellent load-bearing capacity with an optimal strength-to-weight ratio. Our Universal Beams are manufactured to AS/NZS 3679.1 standards and are widely used in building construction, infrastructure projects, and industrial applications.
Select Size
Selected Product Details:
- Designation:250 UB 31.4
- Weight:31.4 kg/m
- Depth:252 mm
- Flange Width:146 mm
- Web Thickness:6.1 mm
- Flange Thickness:8.6 mm
- Surface Area:1.060 m²/m
- Length:9m
- Finish:Primed
Universal Beams (UB), also known as I-beams or H-beams, are structural steel sections with an I-shaped cross-section. They are designed to provide excellent load-bearing capacity while maintaining an optimal strength-to-weight ratio, making them ideal for a wide range of construction and engineering applications.
Our Universal Beams are manufactured to AS/NZS 3679.1 standards using high-quality 300Plus grade steel. They are available in a comprehensive range of sizes and configurations to meet various structural requirements, from light commercial to heavy industrial applications.
Key Features:
- Manufactured to AS/NZS 3679.1 standards
- 300Plus grade steel for superior strength and structural integrity
- Excellent strength-to-weight ratio
- Available in multiple sizes from 150mm to 610mm depth
- Versatile for various construction and engineering applications
- Precision manufactured for consistent quality
- Available in primed or galvanised finishes
- Standard and custom lengths available
